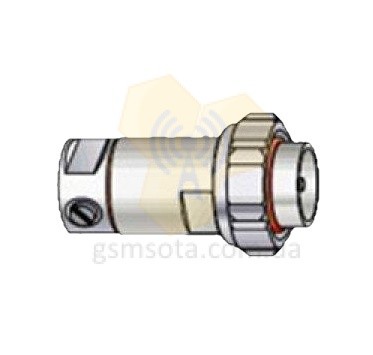

RFS 716M-LCF78-062 роз'єм 7-16 штекер для фідер 7/8 "

716M-LCF78-062 Роз'єм 7/16-male (тато), моноблок, під герметик PLAST 2000, для кабелю CELLFLEX 7/8 "low loss flexible cable (LCF78-50JA-R, LCF78-50JFNA)
виробництво: RFS

Сумісність: RFS LCF78-50JA-R, RFS LCF78-50JFNA.

Radio Frequency Systems 'line of high performance coaxial cable connectors are designed
specifically to provide the highest quality connector-cable interface while simplifying and speeding up
the attachment of connectors to CELLFLEX® coaxial cables. RFS connectors are fully tested for
mechanical and electrical compliance specifications. They are available in all popular cable sizes in a
variety of mating interfaces. The 7-16 connector is the most rugged RF connection meeting all
requirements even under severe environmental conditions.

Technical Specifications
Transmission Line Type Coaxial Cable
Cable Size 7/8 "
Cable Type Foam Dielectric, Foam Dielectric, Ultraflexible, Radiating
Mating Interface 7-16 DIN
Connector Type RAPID FIT ™
Sealing Method Plast 2000
Gender Male
Plating Outer /Inner Silver /Silver
Length, mm (in) 66.0 (2.6)
Outer Diameter, mm (in) 37.0 (1.5)
Weight, kg (lb) 0.22 (0.49)
Inner Contact Attachment Spring Finger
Outer Contact Attachment Spring Finger
3rd Order IM Product @ 2x20 Watts, dBc<-156
Return Loss. min (VSWR. max). dB (VSWR) @ Max. Frequency See Table Below
Maximum Frequency, GHz 3.7
Return Loss (VSWR) for DC< f ≤ 1GHz, dB (-) 1.02:1(40.0 dB)
Return Loss (VSWR) for 1< f ≤ 2.7GHz, dB (-) 1.03:1(36.5 dB)
Return Loss (VSWR) for 2.7< f ≤ 3.7GHz, dB (-) 1.06:1(30.7 dB)
Wrench size front, mm (in) 30 (1-3 /16)
Wrench size rear, mm (in) 30 (1-3 /16)
Trimming Tool TRIM-Series-A
Waterproof Level IP66 and IP68
Sealing Volume, cm3 (ounces) 7 (0.26)
